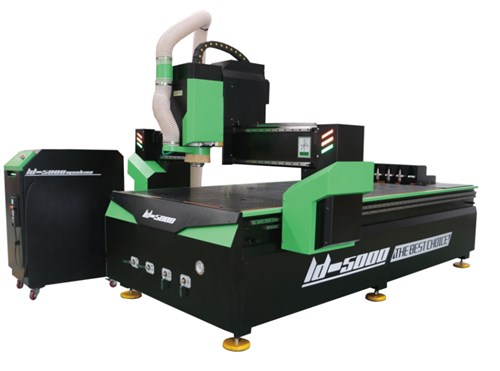

Product Features:
Ø Mini luminous characters, acrylic cutting, carving, chamfering, reached mirror effect. Processing acrylic panels (TV, DVD and other various acrylic panel
).
Ø Wood
furniture, cabinet doors, acrylic products, exhibition, GRG, plastic plate
cutting
Ø Range of machining materials:Acrylic high light processing, aluminum plate, copper plate, insulation board, power board, honeycomb board, ABS board, PVCboard, wood, organic board
Ø Machine body : Quenching heat treatment ,precision machining
of CNC machine tools
|
Configuration List
|
|
Working Area
|
1300×2500×200mm
|
|
Driving Mode
|
Servo motor drive
|
|
Control System
|
DSP NK105
|
|
Mesa
Structure
|
Suction and
pressure integrated platform
|
|
X Y Z Transmission
|
X、Y
axis imported grinding rack drive , Z axis screw drive
|
|
Spindle Power
|
7.5KW (Air-cooling
with ATC)
|
|
Spindle Speed
|
0-24000r/min
|
|
Repositioning Accuracy
|
0.05mm
|
|
ATC
|
4 PCS
|
|
Vacuum Pump Power
|
7.5KW
|
|
Guide
|
Taiwan SHAC
|
|
Machine Body
|
Quenching
heat treatment ,precision machining of CNC machine tools
|
|
Power Supply
|
3P/380V/50Hz
|

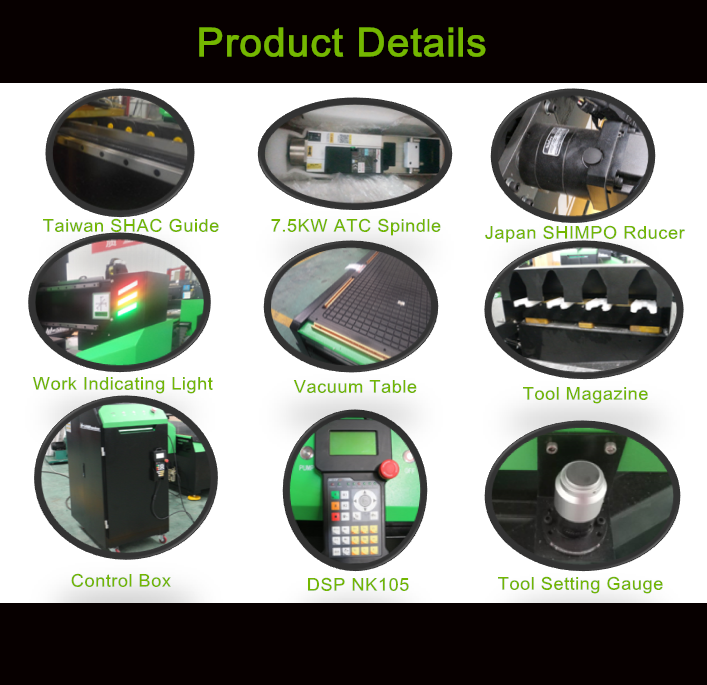

Product
Details
Cutting
Sample
